GD-MSQuad
GD-MSQuad
- Glow Discharge Mass Spectrometry (GDMS) is a very rapid, robust analytical tool for monitoring elemental compositions and impurities in materials based on glow discharge atomization/ionization source combined with easy to use Quadrupole mass analyzer.
- Besides full survey elemental coverage, layers, depth specific distributions, mapping with very high depth and mass resolutions.
- GDMS is a powerful tool for advanced materials (metals, alloys, graphite, electronic materials, oxides and ceramics)
GD-HRMS
GD-MSQuad
Features of the GD-HRMS ultra-Trace
- Purity certification up to 99.99999% (7N)
- Availability of cryo-cooling of the GD cell to minimize gas backgrounds
- Accommodates both pin and flat cell geometries
- Absolutely no mass bias
- Calibration consists of a quick check of 180Ta and 181Ta to ensure that the IC and Faraday detectors are in agreement
- Ability to analyze a wide range of both conductive and non-conductive samples - from alloys to high purity materials.
GC-HRMS
GC-HRMS of high performance, double focusing magnetic sector instruments field proven since 1990s. The ion optic design for both the organic and inorganic products of MSI with minimal lenses in the ion optics represents the best technology optimizing on high Sensitivity, Selectivity, Specificity and Resolution. Today GC-HRMS is a gold standard that means reliability and innovation in the world of High Resolution Mass Spectrometry. Currently the GC-HRMS with field-proven optics boasts of over 200 units installed worldwide.
LA-ICPMS
KEMS-HRMS

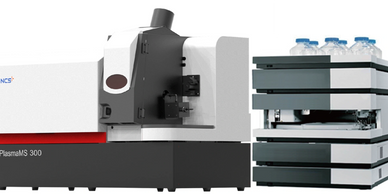

- Coupled with the Laser Ablation Atomizer hyphenated to ICP-MS becomes LA-ICPMS which can achieve solid-state direct sampling, reducing matrix interferences etc.
- The overall performance of the instrument remains stable, and all elements demonstrate excellent linearity in calibration build and routine sample analysis.
- The results of content accuracy comparison strongly confirm the outstanding accuracy.
- The potential of this hyphenated technology in the analysis of trace element distribution on material surfaces, whether in Semiconductor or others proves it's effectiveness as a powerful detection technique surface analysis and for ore mineral composition.
LC-ICPMS
KEMS-HRMS
KEMS-HRMS
- Speciation by HPLC-ICP-MS (Liquid Chromatography-Inductively Coupled Plasma Mass Spectrometry) is an advanced analytical technique that combines the separation capabilities of High Performance Liquid Chromatography (HPLC) with the sensitive detection power of inductively coupled plasma mass spectrometry (ICP-MS). This method is widely used for the analysis of different chemical species (e.g., ions, molecules, complexes) of elements in a sample.
- HPLC-ICP-MS is a powerful tool for speciation analysis, combining the separation capabilities of liquid chromatography with the sensitivity of inductively coupled plasma mass spectrometry. This method provides invaluable insights into the different forms of elements in a sample, which is critical for understanding their environmental, biological, and toxicological properties.
KEMS-HRMS
KEMS-HRMS
KEMS-HRMS
Knudsen Effusion Mass Spectrometry
- Knudsen Effusion Mass Spectrometry (KEMS) is a proven vapor pressure measurement technique capable of evaluating partial vapor pressures at high temperatures.
- By use of the Knudsen cell, KEMS provides quantitative, kinetic and thermodynamic information about isotopes and compounds contained in the analyte by assessing the gaseous emissions. The KEMS instrument from MSI is built on the proven advantages;
- Fully baked ion optics
- Fully laminated magnet for fast scanning
- Magnet range guaranteed from 1 amu
- Stable platform with modular ion optics to enable ease of installing of a glove box
- Ultimate resolution of 80,000 enabling higher efficiency for routine applications
- Dual filament for the EI source with trap and/or emission control
- Heated and cooled ion source
